Learn how smart glass and smart film use advanced technology to switch seamlessly between transparency and privacy—giving you instant control, while also exploring our straightforward installation process.
Smart glass often feels like futuristic technology, but the science behind it is surprisingly elegant and very well understood. At the heart of most modern intelligent smart glass systems is a material called PDLC "polymer dispersed liquid crystal", which is responsible for the ability of glass to switch from transparent to opaque in seconds.
To understand how this works, it helps to start with what smart glass is trying to solve. Traditional glass is static. It either lets light through or it doesn't change at all unless you physically modify it using blinds, curtains, or frosted coatings. Smart glass, on the other hand, is designed to dynamically control how light passes through it, allowing privacy and transparency to be switched electronically. This transformation is what makes it so widely used in modern homes, offices, hospitals, and architectural spaces.
The core of this technology is PDLC film, a composite material made by suspending microscopic liquid crystal droplets inside a polymer matrix. These droplets are incredibly small and distributed evenly throughout the film layer, which is sandwiched between two transparent conductive coatings. These coatings act as electrodes that allow an electric field to pass through the material when voltage is applied.
At the heart of this innovation is PDLC technology (Polymer Dispersed Liquid Crystal) — the same liquid crystal technology used in TVs, smartphones, and computer screens, now engineered for large architectural glass surfaces.
An electrical current aligns millions of microscopic liquid crystal molecules in perfect order. Light passes straight through, and the glass becomes transparent.
The liquid crystals return to their natural, random state. Light scatters, and the glass turns opaque — instantly creating privacy. In its frosted state, up to 91% of light is diffused.
This technology provides fast switching speeds, silent operation, and long-term durability. Our systems are compatible with wall switches, remote controls, smart home automation platforms, and building control systems.
Understanding how liquid crystal technology transforms glass or film from opaque to clear
In its natural, unpowered state, the liquid crystals inside the PDLC film are randomly oriented. Each microscopic crystal is pointing in a different direction, which creates a chaotic internal structure. When light enters the film, it hits these randomly aligned crystals and is scattered in many directions instead of passing straight through. This scattering effect is what makes the glass appear frosted or opaque when no electricity is applied. This is the default "privacy mode" of the system.
When an electrical current is introduced, something very precise happens at the molecular level. The liquid crystal molecules begin to align themselves with the direction of the electric field. Instead of being randomly scattered, they now point in a consistent direction. This alignment dramatically reduces light scattering because the internal structure becomes uniform. As a result, light is able to pass through the film with minimal disruption, and the glass becomes transparent almost instantly.
This transition between opaque and clear states can happen in milliseconds, which is why switchable smart glass feels immediate and responsive when controlled by a switch, remote, or smart system. Once the electrical current is removed, the liquid crystals immediately return to their random orientation, and the glass returns to its frosted appearance.
What makes PDLC particularly useful in architecture is that it does not rely on mechanical movement. There are no blinds, shutters, or moving parts involved. Everything happens at a microscopic level inside a sealed film layer. This gives the system a clean aesthetic, low maintenance requirements, and a long operational lifespan.
Another important scientific principle behind PDLC is refractive index matching. In simple terms, the polymer matrix and liquid crystal droplets have different optical properties when unpowered. This mismatch causes light to scatter. When voltage is applied, the alignment of the crystals brings their optical properties closer to that of the surrounding polymer, reducing scattering and allowing clearer transmission of light. This optical shift is what creates the visible change between frosted and clear states.

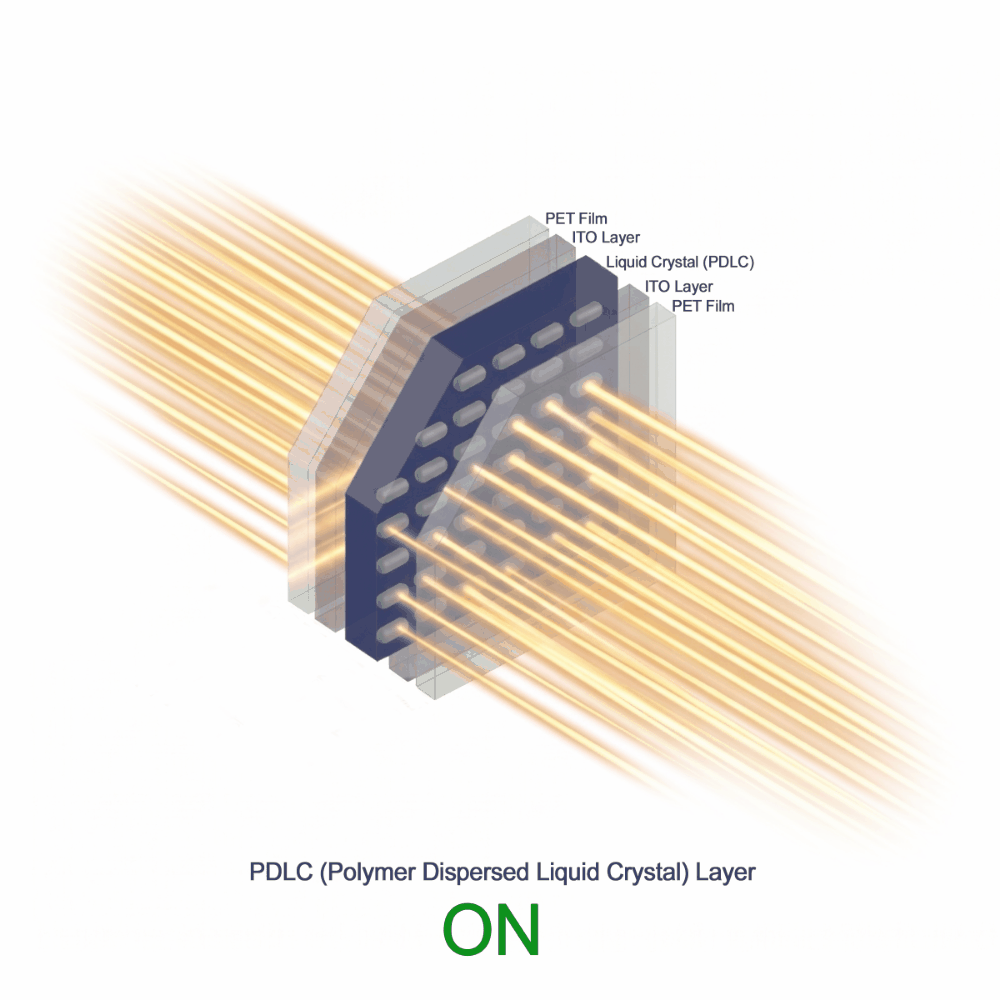

The central layer containing liquid crystal droplets suspended in polymer matrix
Transparent electrodes that apply the electrical field across the film
Outer coatings that protect against scratches, UV, and environmental factors
For retrofit applications applied directly to existing glass surfaces

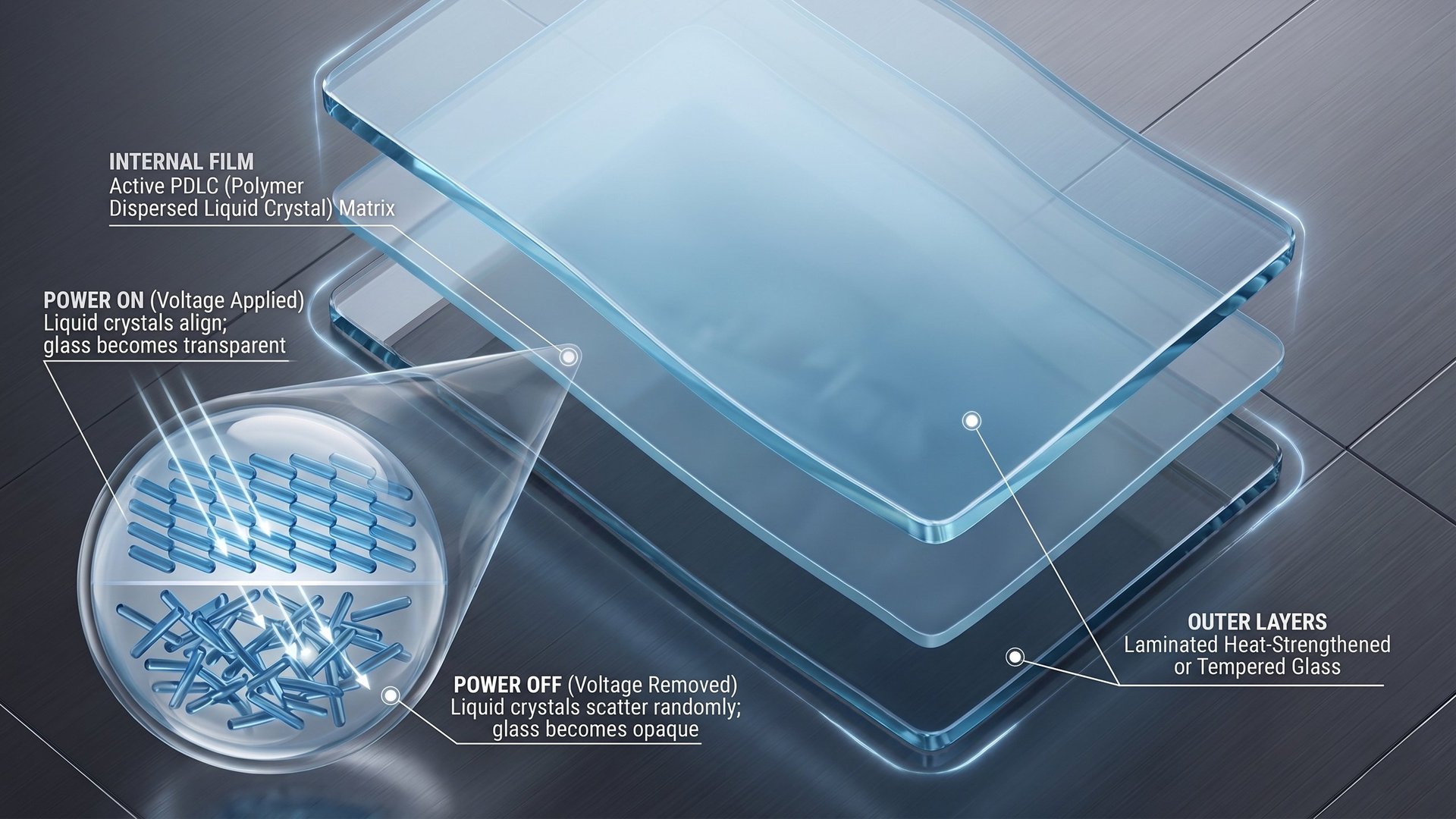

In laminated intelligent glass, this PDLC layer is permanently sealed between panes of glass, making it more durable and suitable for long-term architectural use.
One of the reasons PDLC technology has become so widely adopted is its combination of speed, efficiency, and relatively low power consumption. The system only requires electricity when maintaining the transparent state, and even then, the energy usage is minimal.
Once switched off, the film automatically returns to its opaque state without requiring additional energy input. This "fail-safe privacy" behaviour is one of the reasons it is often used in sensitive environments such as healthcare rooms, meeting spaces, and residential bathrooms.
From a scientific perspective, PDLC is part of a broader category of materials known as electro-optical composites. These materials respond to electrical signals by changing how they interact with light. Research into PDLC systems shows that performance depends on factors such as droplet size, polymer composition, film thickness, and voltage levels, all of which influence clarity, switching speed, and durability.
Despite its complexity at the microscopic level, the user experience is extremely simple. A switch is pressed, voltage is applied, and the glass becomes clear. The switch is turned off, and the glass becomes opaque. This simplicity hides a highly engineered system of liquid crystals, polymers, and conductive layers working together in real time.
There are also practical optical effects that users often notice. Even in the transparent state, PDLC-based glass may have a very slight haze compared to traditional clear glass. This is due to the presence of micro-structures within the film that, while aligned, still slightly affect light transmission. This is not a defect but a physical limitation of the technology itself.
Because the liquid crystals are extremely small and lightweight, they react quickly to changes in electrical fields. This allows smart glass to switch states in fractions of a second, making it suitable for dynamic environments where privacy needs can change instantly.
In more advanced systems, PDLC can also be integrated into smart building networks, allowing control through mobile apps, automation systems, or voice assistants. This turns static glass surfaces into interactive architectural elements that respond to user behaviour, time of day, or environmental conditions.
Ultimately, the science behind intelligent smart glass is a combination of materials science, optics, and electrical engineering. At its core, it is not magic or illusion — it is a carefully engineered system that manipulates how light behaves at a microscopic level using controlled electrical fields. This innovation continues transforming architecture, energy efficiency, and user comfort worldwide today.
What makes PDLC technology so powerful is not just that it works, but that it works silently, instantly, and repeatedly without mechanical wear. It transforms glass from a passive building material into an active, controllable surface. And that shift is exactly why smart glass has moved from experimental technology into mainstream architectural design in 2026.
